🧱 Product Overview

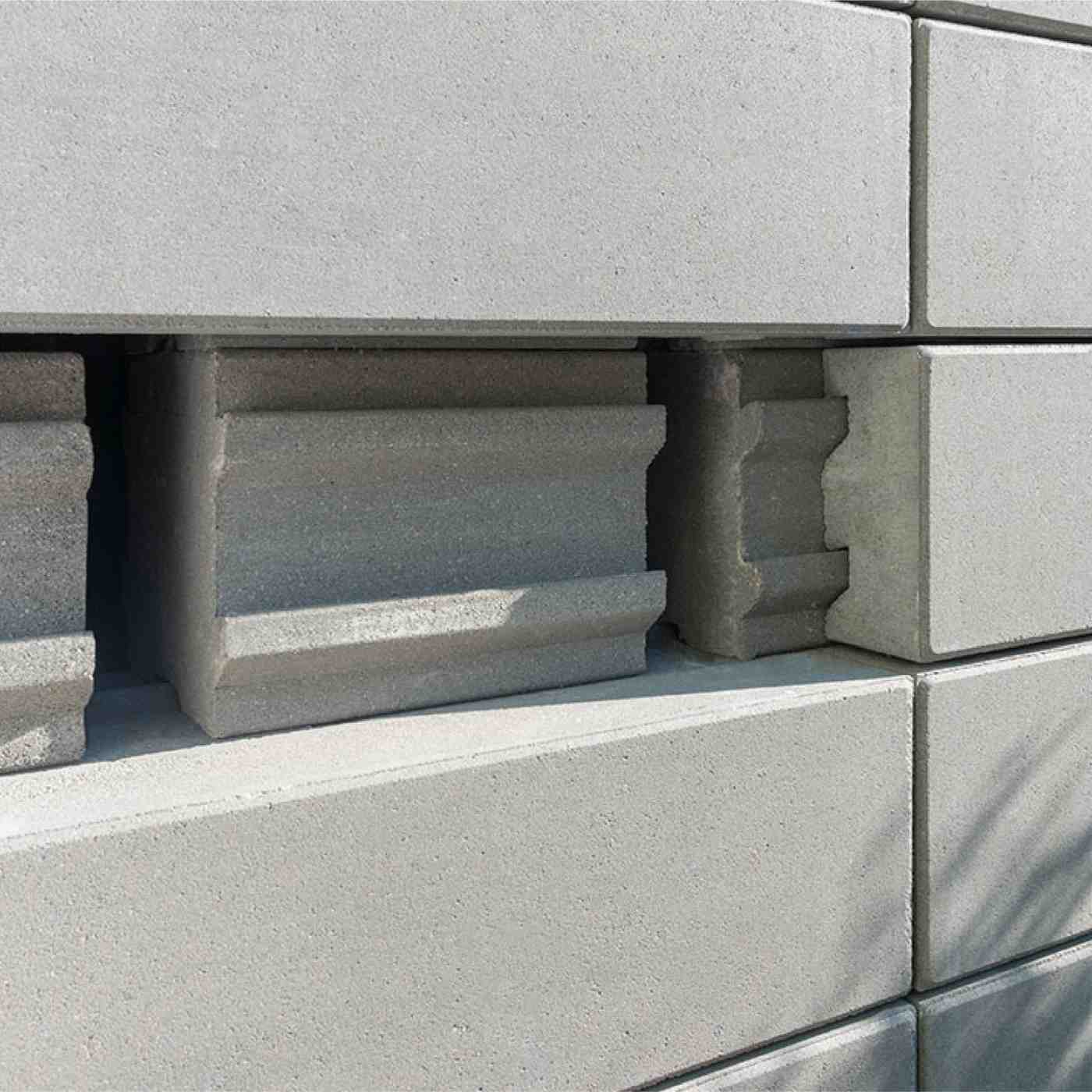

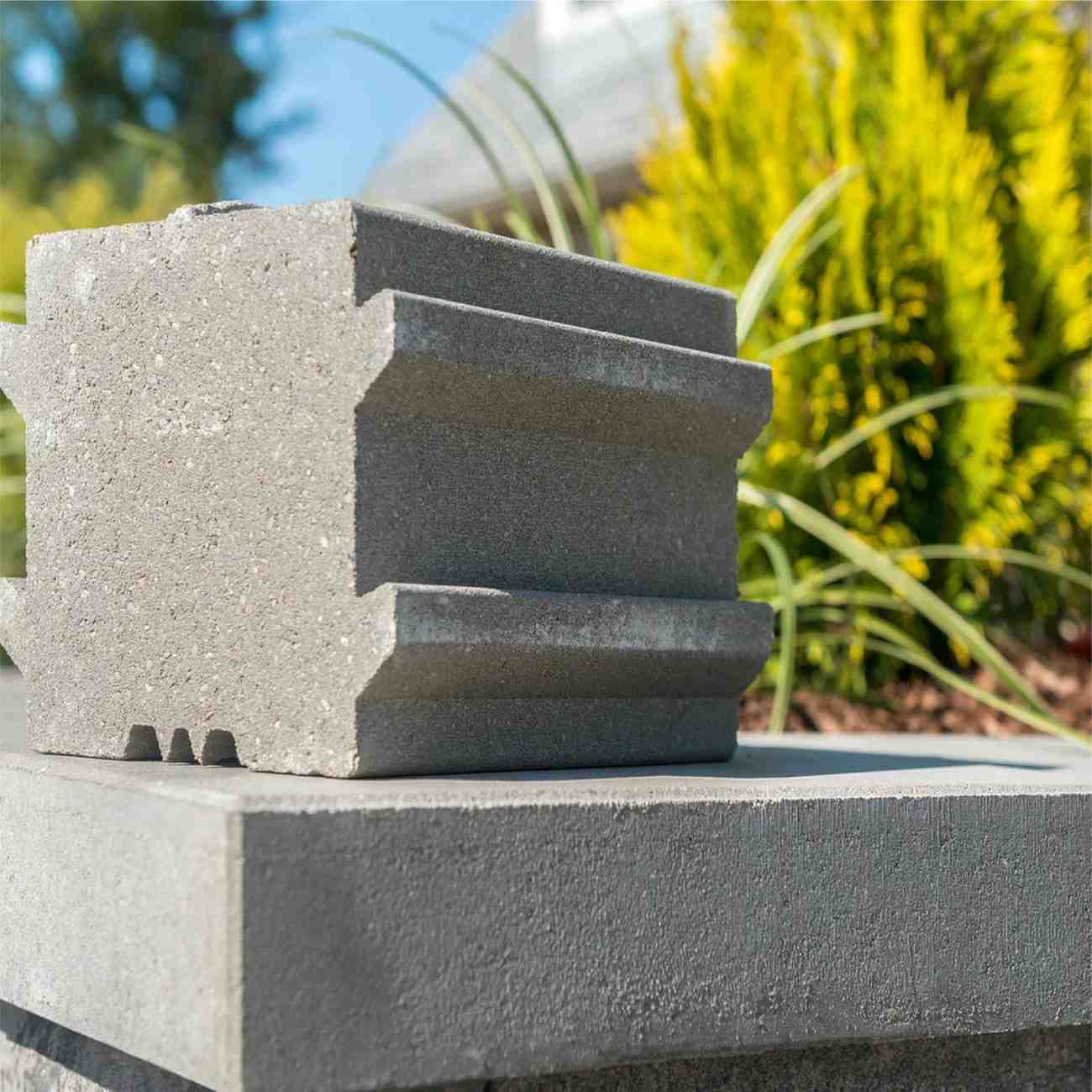

The U‑CARA Backer is the structural core of Unilock’s innovative U‑Cara Multi‑Face Wall System. These concrete blocks feature patente
🏗️ Design & Construction Features
-
Sure Track® system: Horizontal rails allow fascia panels to slide and lock into place, offering seamless installation and strong bonding.
-
Versatile applications: Use Standard Backer for upright features like garden walls, pillars, planters, fire features, and outdoor kitchens. Opt for the Large Backer in setback configurations to build retaining walls up to ~10 ft (3 m) high — even without geogrid reinforcement.
🎨 Aesthetic Flexibility
-
Mix-and-match finishes: The backer supports diverse U‑Cara fascia panels—available in multiple colors, textures, and materials—allowing creative combinations of pattern, accent bands, and transitions between surfaces.
-
Coordinated look with patio pavers and other hardscape elements, thanks to matching EnduraColor palettes.
📐 Sizes & Specifications
| Backer Type | Dimensions (in) | Use Case |
|---|---|---|
| Standard Backer | ~5.9 H × 7.9 W × 5.9 D | Single- or double-sided vertical features |
| Large Backer | ~5.9 H × 6.9 W × 11.6 D | Retaining walls up to ~3 ft (0.9 m); larger combined walls can reach ~10 ft (3 m) in height |
Bundles typically include 63–105 units depending on size; contact suppliers for exact bundle specs.
🛠️ Installation Notes
-
Backer-first build: Install the structural blocks in desired layout, then simply hang fascia panels onto the tracks.
-
Modular flexibility: Standard, corner, and large backer units allow varied structures like pillars, barriers, and seat walls.
-
Optional systems: Explore modular frame systems and surface-mounted rails for retrofits on wood or concrete walls.
✅ Benefits at a Glance
-
Structural strength: Durable concrete units provide core stability.
-
Design versatility: Easily customize aesthetics with endless panel options.
-
Ease of installation: Precast rails simplify aligning and securing façade panels.
-
Scalable solutions: From small garden accents to multi‑foot retaining walls.
Additional information
| brand | UNILOCK |
|---|
